PC Material Led Linear Retrofit Kit Magnetic Mount Led Light 140Lm/W 2FT 25W 20W 15W
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | ILEDING |
| Certification: | DLC/ETL |
| Model Number: | R10-22TR25WD3P3C |
Payment & Shipping Terms:
| Price: | $13.00/pieces |
|---|---|
| Packaging Details: | Commercial 2ft 4ft 8ft LED Linear Strip Lighting |
|
Detail Information |
|||
| Color Temperature(CCT): | 3500K (Warm White), Warm White | Warranty(Year): | 5-Year |
|---|---|---|---|
| Color Rendering Index(Ra): | 80 | Support Dimmer: | Yes |
| Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 1 |
| Warranty(Years): | 5 | Input Voltage(V): | 120-277V |
| Lamp Luminous Efficiency(lm/w): | 145 | CRI (Ra>): | 80 |
| Working Temperature(℃): | -40 - 40 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | PC | IP Rating: | IP65 |
| Application: | Office, Commercial | Light Source: | LED, LED |
| Tube Length(ft): | 2 | LED Light Source: | SMD2835 |
| CRI(Ra): | 85 | Driver: | 120-277V / 120-347V |
| Warranty: | 5years | Product Name: | Led Linear Retrofit Kit Magnetic Mount Led Light Strip 2FT 25W |
Product Description
Product Description
Led Linear Retrofit Kit Magnetic Mount Led Light Strip 2FT 25W 20W 15W

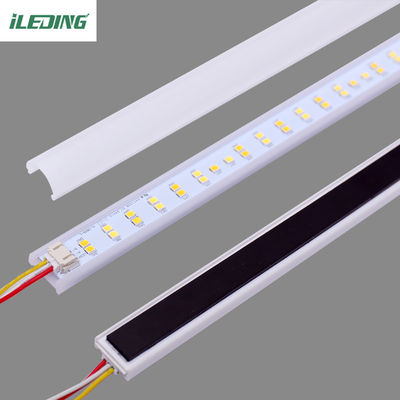

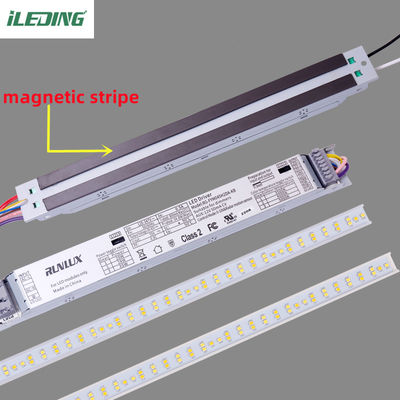

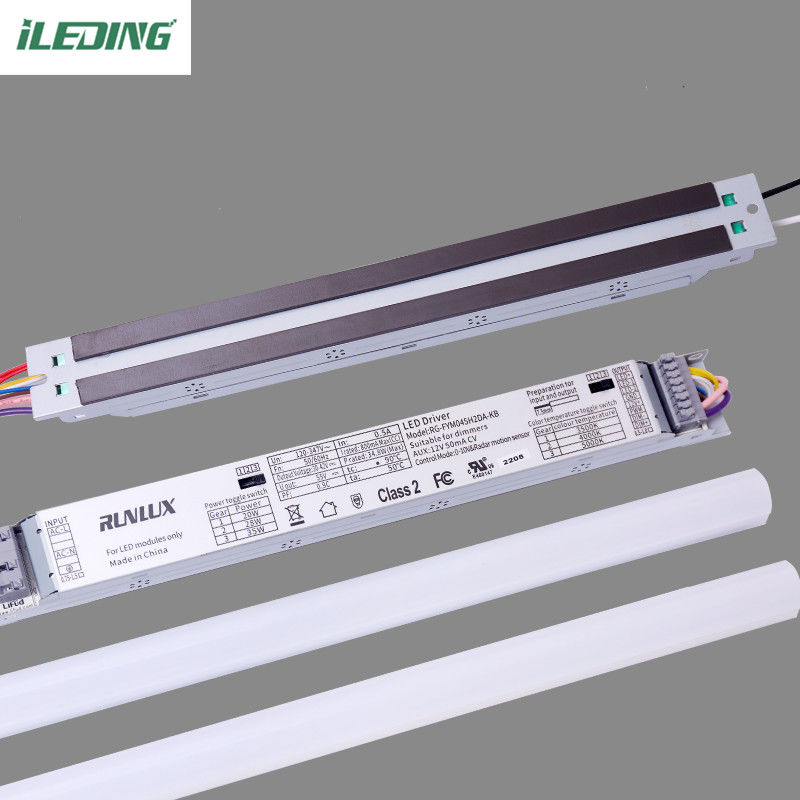

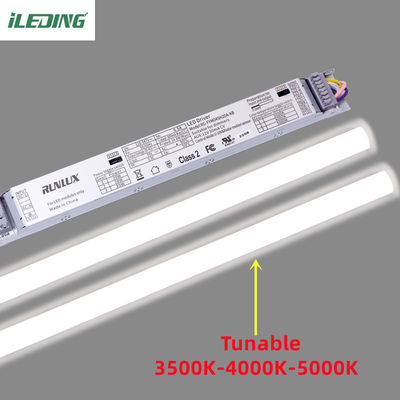

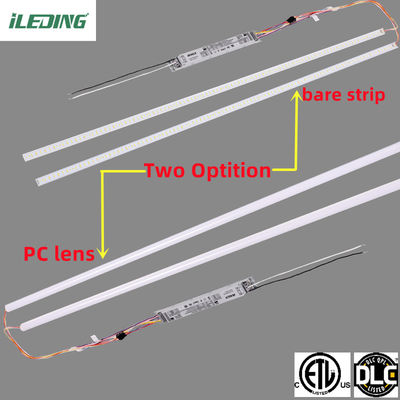

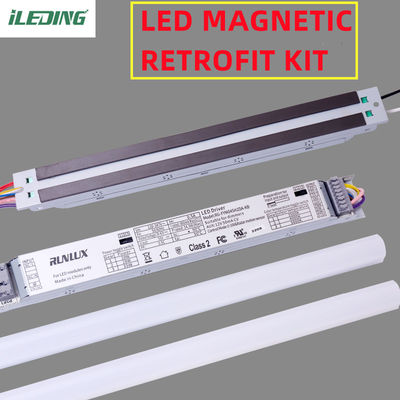

Detailed Images
Features:
* Voltage:120-277V/60Hz, or 120-347V/60Hz
* Lumen Efficiency:145Lm/W,
* CCT:3000, 3500, 4000, 5000K all in one fixture
* Mounting method:Magnetic led strips and driver, quick-connect
* Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” fixtures
* Dimmable is also available,4 Wattage Selectable
* Voltage:120-277V/60Hz, or 120-347V/60Hz
* Lumen Efficiency:145Lm/W,
* CCT:3000, 3500, 4000, 5000K all in one fixture
* Mounting method:Magnetic led strips and driver, quick-connect
* Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” fixtures
* Dimmable is also available,4 Wattage Selectable
Product Presentation
|
Model
|
R10-22TR25WD3P3C
|
|
Material
|
PC
|
|
Power
|
25W/20W/15W
|
|
Lumen
|
3625
|
|
Voltage
|
120-277V
120-347V
|
|
CCT
|
3500K/4000K/5000K
|
|
Size
|
2pcs x 1100mm
|
|
PF
|
0.9
|
|
Dim
|
0-10V
|
Application
The LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments.
Certifications
DLC 5.1 Premium -Retrofit Kits for Direct Linear Ambient Luminaires
