4FT PC Cover Office Led Linear retrofit Kit Magnetic Troffer Retrofit Kits 35W 28W 20W
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | ileding |
| Certification: | ETL, DLC/ETL |
| Model Number: | R10-24TR35WD3P3C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $14.88/pieces 2-49 pieces |
|
Detail Information |
|||
| Application: | Warehouse, Commercial | Item Type: | Light Strings |
|---|---|---|---|
| Color Temperature(CCT): | 3500K (Warm White), Warm White | IP Rating: | Ip44 |
| Lamp Body Material: | Plastic | CRI (Ra>): | 80 |
| Input Voltage(V): | AC 110V ( ± 10%) | Lamp Luminous Efficiency(lm/w): | 150 |
| Lamp Luminous Flux(lm): | 4900 | Warranty(Year): | 5-Year |
| Working Lifetime(Hour): | 50000 | Working Temperature(℃): | 0 - 20 |
| Color Rendering Index(Ra): | 80 | Light Source: | LED, LED |
| Support Dimmer: | Yes | Lighting Solutions Service: | Lighting And Circuitry Design, Onsite Metering, DIALux Evo Layout, LitePro DLX Layout, Auto CAD Layout, Agi32 Layout, Project Installation |
| Lifespan (hours): | 50000 | Working Time (hours): | 50000 |
| Product Weight（kg）: | 1 | Control Mode: | Remote Control, Sensor Control |
| LED Light Source: | SMD2835 | CRI(Ra): | 85 |
| Driver: | 120-277V / 120-347V | Warranty: | 5years |
| Product Name: | Led Linear Light Magnetic Strip Troffer Retrofit Kits 35W | Function: | Indoor Home |
Product Description
Product Description

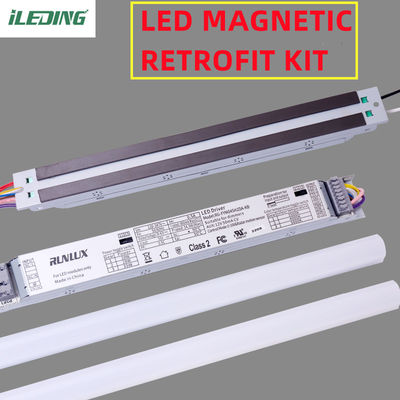

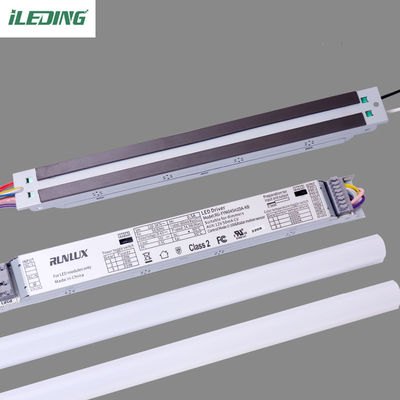

4FT Office Led Linear Light Magnetic Strip Troffer Retrofit Kits 35W 28W 20W
Detailed Images
Features:
* Voltage:120-277V/60Hz, or 120-347V/60Hz
* Lumen Efficiency:145Lm/W,

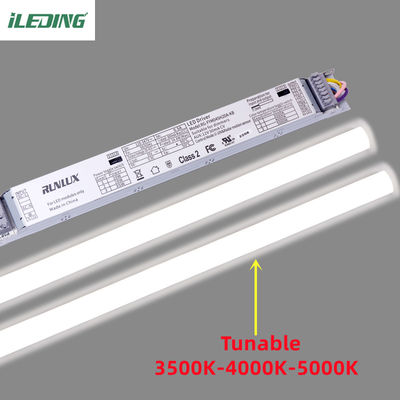

* CCT:3000, 3500, 4000, 5000K all in one fixture

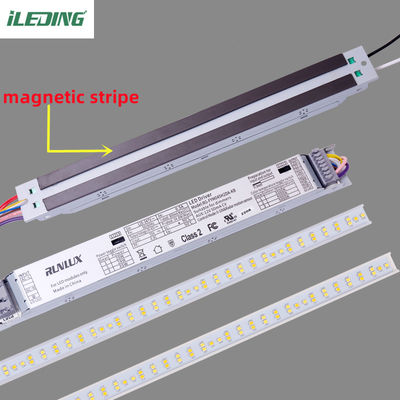

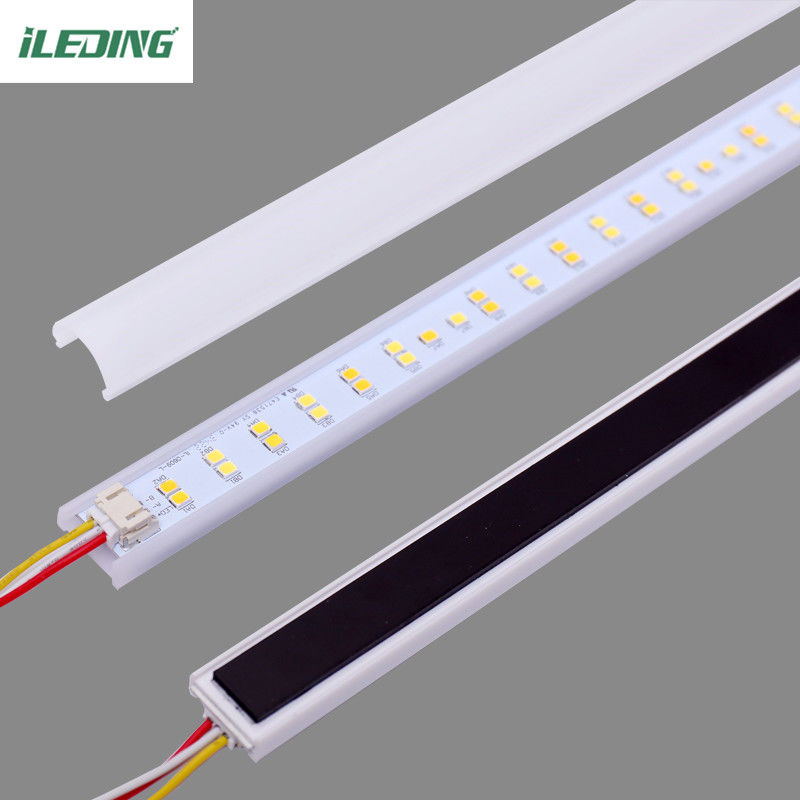

* Mounting method:Magnetic led strips and driver, quick-connect
* Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” fixtures
* Dimmable is also available,4 Wattage Selectable
* Voltage:120-277V/60Hz, or 120-347V/60Hz
* Lumen Efficiency:145Lm/W,
* CCT:3000, 3500, 4000, 5000K all in one fixture
* Mounting method:Magnetic led strips and driver, quick-connect
* Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” fixtures
* Dimmable is also available,4 Wattage Selectable
Product Presentation
|
Model
|
R10-24TR35WD3P3C
|
|
Material
|
PC
|
|
Power
|
35W/28W/20W
|
|
Lumen
|
5075
|
|
Voltage
|
120-277V
120-347V
|
|
CCT
|
3500K/4000K/5000K
|
|
Size
|
2pcs x 1100mm
|
|
PF
|
0.9
|
|
Dim
|
0-10V
|
Application
The LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments.
Certifications
DLC 5.1 Premium -Retrofit Kits for Direct Linear Ambient Luminaires
