120-277V / 120-347V Driver 2FT 4FT 49W LED Magnetic Retrofit Kit Light For Troffer Light Linear retrofit Kit
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | ileding |
| Certification: | ETL, DLC/ETL |
| Model Number: | R7-24TRF49WD3PXXK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $13.99/pieces >=2 pieces |
|
Detail Information |
|||
| Application: | Residential, Commercial | Item Type: | Light Strings |
|---|---|---|---|
| Color Temperature(CCT): | 3500K (Warm White), Warm White | IP Rating: | Ip44 |
| Lamp Body Material: | PC | CRI (Ra>): | 80 |
| Input Voltage(V): | AC 110V ( ± 10%) | Lamp Luminous Efficiency(lm/w): | 130 |
| Lamp Luminous Flux(lm): | 6370 | Warranty(Year): | 5-Year |
| Working Lifetime(Hour): | 50000 | Working Temperature(℃): | 20 - 40 |
| Light Source: | LED, LED | Support Dimmer: | Yes |
| Lighting Solutions Service: | Lighting And Circuitry Design, Onsite Metering, DIALux Evo Layout, LitePro DLX Layout, Auto CAD Layout, Agi32 Layout, Project Installation | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 1 |
| Control Mode: | Sensor Control | LED Light Source: | SMD2835 |
| CRI(Ra): | 85 | Driver: | 120-277V / 120-347V |
| Warranty: | 5years | Product Name: | 2FT 4FT 49W LED Magnetic Strip Light For Troffer Light Retrofit Kit |
| Function: | Hopsital | ||
Product Description
Product Description

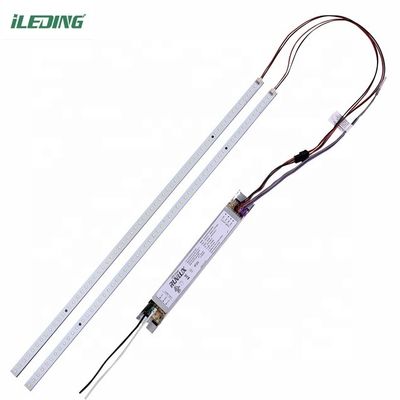

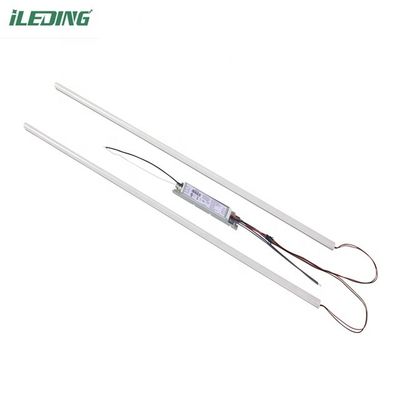

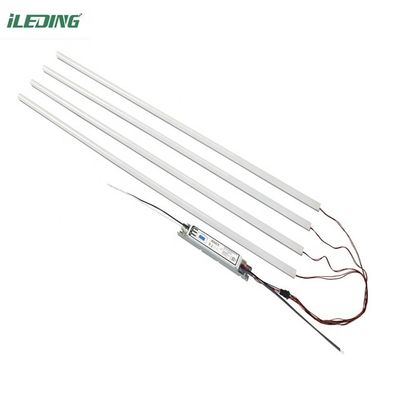

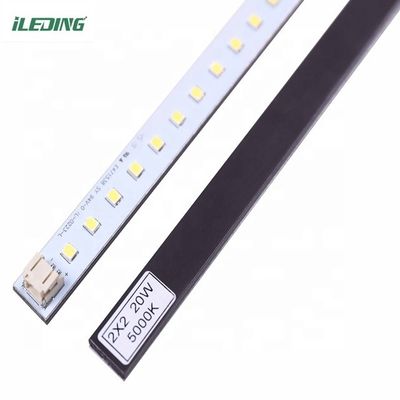

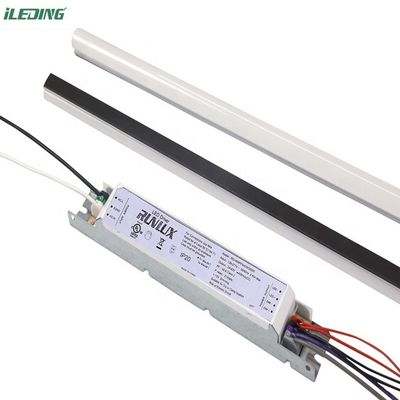

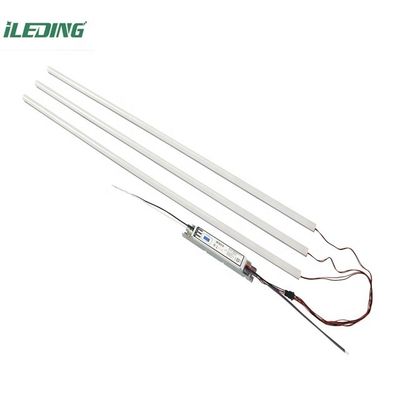

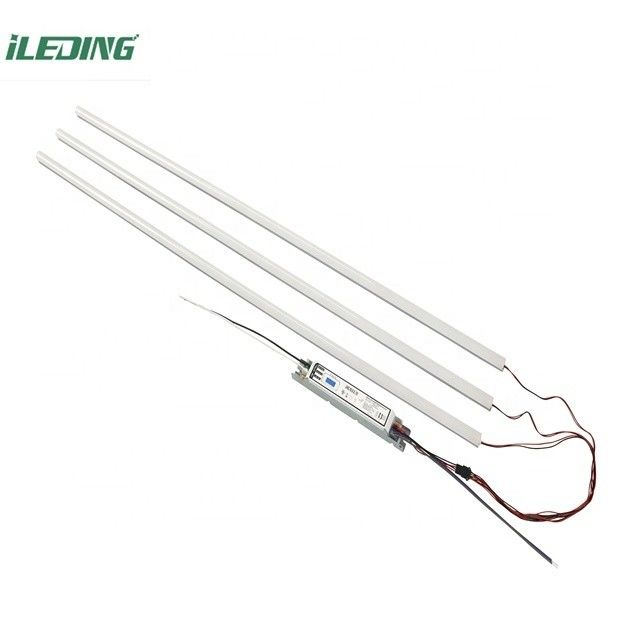

2FT 4FT 49W LED Magnetic Strip Light For Troffer Light Retrofit Kit
Detailed Images
Features:
●Voltage:120-277V/60Hz or 120-347V/60Hz ●Lumen Efficiency:Luminous Efficiency: >145 lm/w LED module, 130 lm/w Luminaire ●Power Factor:up to 0.998 ●CCT:3500K, 4000K, 5000K ●CRI (Ra):82 nominal ●Beam Angle 110° ●Mounting method:Magnetic led strips and driver, quick-connect ●Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffers” and 4’ and 8’ linear fluorescent fixtures ●Dimmable is also available ●Frost lens is available
●Voltage:120-277V/60Hz or 120-347V/60Hz ●Lumen Efficiency:Luminous Efficiency: >145 lm/w LED module, 130 lm/w Luminaire ●Power Factor:up to 0.998 ●CCT:3500K, 4000K, 5000K ●CRI (Ra):82 nominal ●Beam Angle 110° ●Mounting method:Magnetic led strips and driver, quick-connect ●Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffers” and 4’ and 8’ linear fluorescent fixtures ●Dimmable is also available ●Frost lens is available
Product Presentation
|
Model
|
R7-24TRF49WD3PXXK
|
|
Material
|
PC
|
|
Power
|
49W &40W &35W
|
|
Lumen
|
7105LM
|
|
Voltage
|
120-277V
120-347V
|
|
CCT
|
3500K/4000K/5000K
|
|
Size
|
2pcs x 1100mm
|
|
Dim
|
0-10V
|
|
PF
|
0.9
|
Application
The LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments.
