Durable LED Magnetic Linear retrofit Kit with 50000 Working Hours and 5075lm Luminous Flux
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | iLEDING |
| Certification: | DLC/ETL |
| Model Number: | R10-24TR35WD3P3C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $14.00/pieces >=2 pieces |
|
Detail Information |
|||
| Application: | Commerical / Industrial Area, Commercial | IP Rating: | IP67, IP66 |
|---|---|---|---|
| Lamp Body Material: | PC | CRI (Ra>): | 80 |
| Input Voltage(V): | 120v-347v | Lamp Luminous Efficiency(lm/w): | 145 |
| Lamp Luminous Flux(lm): | 5075 | Warranty(Year): | 5-Year |
| Working Lifetime(Hour): | 50000 | Working Temperature(℃): | -40 - 40 |
| Color Rendering Index(Ra): | 80 | Light Source: | LED, LED |
| Switch Mode: | Remote Control, Bluetooth, Manual Button | Support Dimmer: | Yes |
| Lighting Solutions Service: | Lighting And Circuitry Design, LitePro DLX Layout, Project Installation | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 0.8 |
| Color Temperature(CCT): | Warm White | LED Light Source: | SMD2835 |
| CRI(Ra): | 85 | Driver: | 120-277V / 120-347V |
| Warranty: | 5years | Product Name: | Adjust Power Tunable CCT LED Troffer Retrofit Kit Magnetic Strip Light |
| Function: | Hopsital | ||
Product Description
Product Description
Adjust Power Tunable CCT LED Troffer Retrofit Kit Magnetic Strip Light

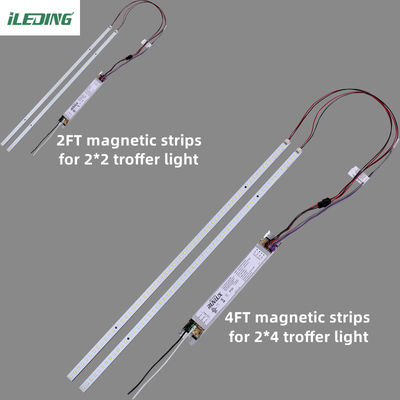

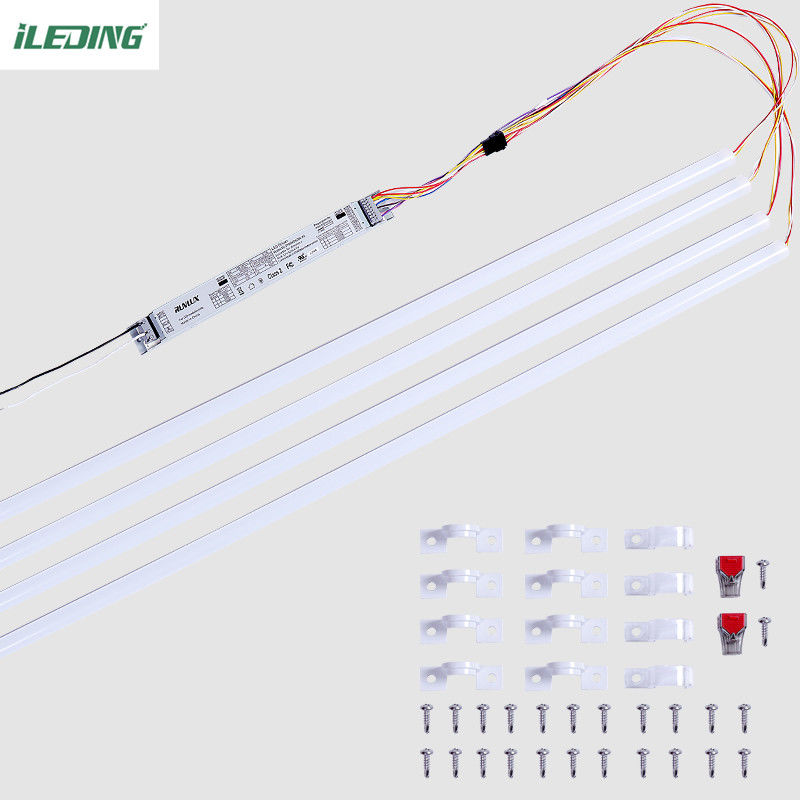

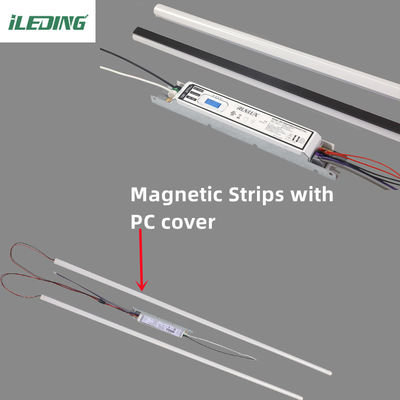

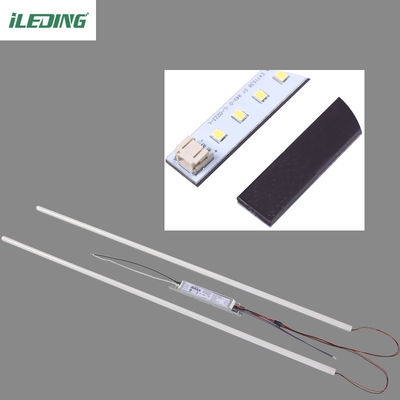

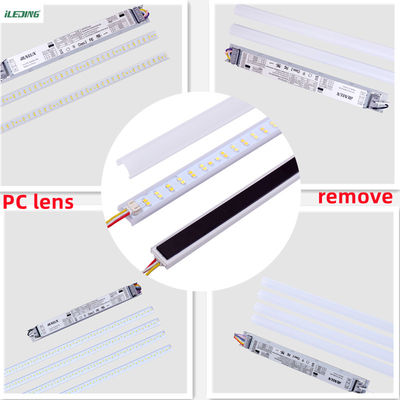

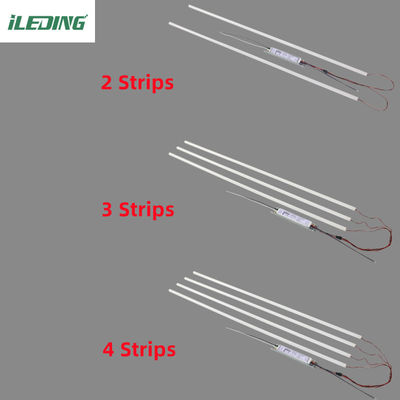

Detailed Images
Features:
* Voltage:120-277V/60Hz, or 120-347V/60Hz
* Lumen Efficiency:140-160Lm/W LED,110-130Lm/w in Luminaire
* CCT:3000, 3500, 4000, 5000K
* Mounting method:Magnetic led strips and driver, quick-connect
* Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” fixtures
* Dimmable is also available,4 Wattage Selectable
* Voltage:120-277V/60Hz, or 120-347V/60Hz
* Lumen Efficiency:140-160Lm/W LED,110-130Lm/w in Luminaire
* CCT:3000, 3500, 4000, 5000K
* Mounting method:Magnetic led strips and driver, quick-connect
* Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” fixtures
* Dimmable is also available,4 Wattage Selectable
Product Presentation
|
Model
|
R10-22TR25WD3P3C
|
|
Material
|
PC
|
|
Power
|
25W/20W/15W
|
|
Voltage
|
120-277V
120-347V
|
|
CCT
|
3500K/4000K/5000K
|
|
Size
|
2pcs x 1100mm
|
|
Dim
|
0-10V
|
Application
The LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments.
Related Products
Company Introduction
Shanghai ileding has a very professional quality control system. QC are strictly under control during the process of incoming inspection, production, storage and delivery, so as to guarantee a good quality.
Packing&Shipping
FAQ
Q1: Are you are a factory or a trading company?
We are the factory and we have our own die-casting workshop.
Q2: All products have a warranty?
Yes, all products have 5 years warranty at least.
Q3: Can you put our brand name or logo on our products?
Yes, we support ODM and OEM service.
Q4: Can i have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mix samples are acceptable.
Q5: How to deal with the faulty?
Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.
Secondly, if there are some problems, please contact with us. We can discuss how to deal with them
until you are satisfied.
--- Don't hesitate to contact us!
We are the factory and we have our own die-casting workshop.
Q2: All products have a warranty?
Yes, all products have 5 years warranty at least.
Q3: Can you put our brand name or logo on our products?
Yes, we support ODM and OEM service.
Q4: Can i have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mix samples are acceptable.
Q5: How to deal with the faulty?
Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.
Secondly, if there are some problems, please contact with us. We can discuss how to deal with them
until you are satisfied.
--- Don't hesitate to contact us!
Want to Know more details about this product
