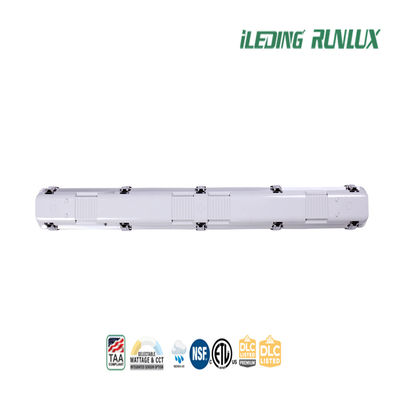

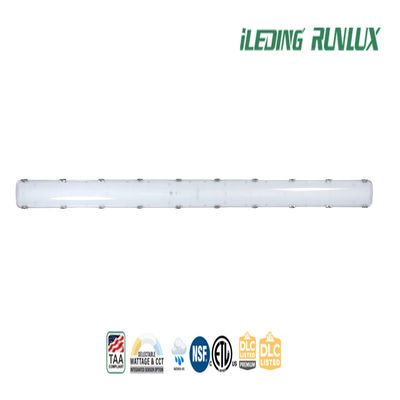

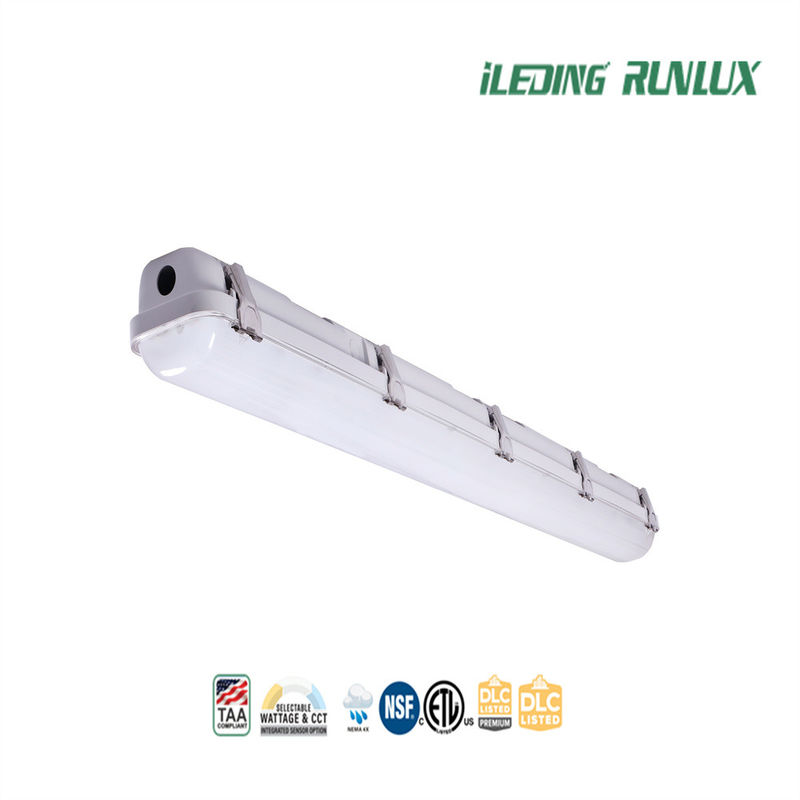

IP66 LED Vapor Proof Light with IK10 Impact Resistance Polycarbonate Housing
Product Details:
| Place of Origin: | China |
| Brand Name: | Shanghai ileding |
| Certification: | ETL DLC ROHS CE |
| Model Number: | R5-4VTM46WD(HV1)3P-3CK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | 20-26USD |
| Packaging Details: | inner box+ outer box |
| Delivery Time: | 30-60 days |
| Supply Ability: | 100000pcs / month |
|
Detail Information |
|||
| Working Temp.: | -40˚C~+40°C / -40˚F~+104°F | Power Factor: | >0.9 |
|---|---|---|---|
| Impact Resistance: | IK10 | Dimmable: | 0-10V Dimming |
| Nominal Frequency: | 50/60Hz | Warranty: | 5 Years |
| Housing Material: | Polycarbonate (PC) | Service Life: | 50.000 H |
Product Description
Product Description:
The LED tri-proof light is available in both HV1 and blank input voltage options. The HV1 model offers a voltage range of 120~347V, while the blank model has a voltage range of 120~277V. This feature ensures that the product can be used in different locations with varying voltage requirements.
The LED tri-proof light has a high power factor of >0.9, which means that it uses power efficiently and reduces the energy consumption. This feature makes it an eco-friendly lighting solution and also helps to reduce energy costs.
The LED tri-proof light has an efficacy of 140lm/W, which means that it produces more light per watt than traditional lighting solutions. This feature ensures that the product provides bright and efficient lighting while using less energy.
The LED tri-proof light is dimmable, and it can be controlled using a 0-10V dimming system. This feature is ideal for areas where the lighting needs to be adjusted based on different activities or events. The dimming feature also helps to reduce energy consumption and increase the lifespan of the product.
The LED tri-proof light has a gray housing color that is suitable for various industrial and commercial applications. The housing is made of high-quality materials that ensure that the product is durable and long-lasting.
In conclusion, the LED tri-proof light is a high-performance, energy-efficient, and eco-friendly lighting solution that is ideal for various industrial and commercial applications. With its HV1 and blank input voltage options, high power factor, high efficacy, dimmable feature, and gray housing color, this product is a perfect choice for those looking for a reliable and cost-effective lighting solution.
Features:
- Product Name: LED Vapor Tight Light
- CRI (Ra): >80
- Service Life: 50.000 H
- Surge Protection: 2.5KV
- Efficacy: 140lm/W
- Impact Resistance: IK10
Technical Parameters:
| Housing Material | Polycarbonate (PC) |
| Housing Color | Gray |
| CRI (Ra) | >80 |
| Lens Material | Polycarbonate (PC) |
| Warranty | 5 Years |
| IP Rating | IP66 |
| Package | 1pcs Per Inner Box, 4pcs Per Master Box For 2 Ft & 4ft; 1pcs Per Master Box For 8ft |
| Input Voltage | HV1 = 120~347V, Blank = 120~277V |
| Dimmable | 0-10V Dimming |
| Working Temp. | -40˚C~+40°C / -40˚F~+104°F |
Applications:
One of the standout features of the LED Vapor Tight Light is its IP66 rating, which means it is dust-tight and can withstand powerful jets of water. This makes it ideal for use in harsh environments, such as warehouses, factories, and outdoor areas. It can also be used in food processing facilities and other areas where hygiene is a concern, as the vapor-tight design prevents moisture and dust from entering the fixture.
The LED Tri-Proof Light can be surface-mounted or suspended as standard, with angle brackets, tamper-proof brackets, or a junction box bracket available as optional extras. This makes it easy to install and provides flexibility in terms of placement. The light is also equipped with an auxiliary output of 12V, which can be used to power other devices.
Some of the common occasions and scenarios where the LED Vapor Tight Light can be used include:
- Warehouses: The vapor-tight design and bright LED lighting make it easy to see and navigate in large warehouse spaces.
- Manufacturing facilities: The rugged design and IP66 rating make it suitable for use in manufacturing facilities, where it may be exposed to dust, moisture, or other harsh conditions.
- Parking garages: The bright, energy-efficient LED lighting can help increase visibility and safety in parking garages and other enclosed spaces.
- Food processing facilities: The vapor-tight design prevents moisture and dust from entering the fixture, making it suitable for use in food processing facilities and other areas where hygiene is important.
- Outdoor areas: The IP66 rating means the LED Tri-Proof Light can withstand exposure to rain, wind, and other outdoor elements, making it ideal for use in outdoor areas such as parking lots, loading docks, and walkways.
Overall, the LED Vapor Tight Light is a durable, versatile lighting solution that can be used in a wide range of applications. Its vapor-tight design, IP66 rating, and auxiliary output make it a reliable choice for industrial and commercial settings, while its energy-efficient LED lighting and easy installation make it a convenient choice for any facility.
