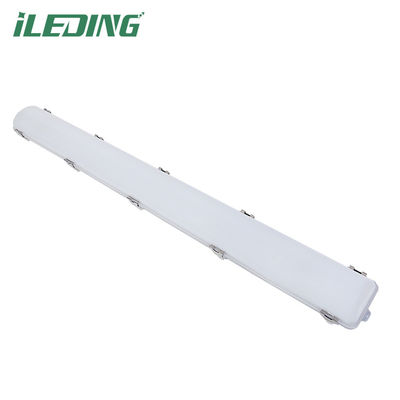

ETL DLC 36W 46W 65W 4ft LED Vapor Tight Light IP66 Waterproof CRI 80 Without Lamp
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | Ileding |
| Model Number: | ILEDINGV-49 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $40.00/pieces 2-29 pieces |
|
Detail Information |
|||
| Color Temperature(CCT): | 4100K (Neutral White) | Warranty(Year): | 5-Year |
|---|---|---|---|
| Color Rendering Index(Ra): | 80 | Support Dimmer: | Yes |
| Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 4 |
| Warranty(Years): | 5 | Input Voltage(V): | AC100-277V |
| Lamp Luminous Efficiency(lm/w): | 130 | CRI (Ra>): | 80 |
| Working Temperature(℃): | -40 - 45 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Plastic | IP Rating: | IP66 |
| Application: | Parking Lot | Light Source: | LED |
| Tube Length(ft): | 4, 8 | LED Light Source: | LED |
| Driver: | 347V Option | Components: | Without Ballast And Lamp |
| Installation: | Ceiling ,surface Or Pendant Mount | Gasket: | Silicon Gasket |
| Closing Clips: | Grey Polycarbonate | Diffuser: | Transparent/Clear Polycarbonate |
| Gear Tray: | Flat Iron Sheet With Glossy White Power Coated | CCT: | 4000K 4500K 5000K |
| Product Name: | 36W 46W 65W 4ft Vapor Tight Waterproof LED Light IP66 Triproof Lamp | ||
Product Description
|
Item |
Specification |
Model |
||
|
|
|
R2-4VTM36WD-XXK |
R2-4VTM46WD-XXK |
R2-4VTM65WD-XXK |
|
General Performance |
Power Consumption |
36W |
46W |
65W |
|
|
Lumens Delivered |
4680 |
5980 |
8450 |
|
|
Efficacy(lm/w) |
130 |
||
|
|
CRI |
80 |
||
|
|
Color Temp. |
4000K, 5000K |
||
|
|
Lifetime(H) |
50,000 |
||
|
|
Size |
45.66"*4.72"*4.29"(1160*120*109mm) |
||
|
|
Power Factor |
≥0.9 |
||
|
|
Input voltage |
120-277V standard (120-347V as optional) |
||
|
Physical |
Housing |
PC |
||
|
|
Humidity |
20%-85% RH, non-condensing |
||
|
Certification |
Certification |
ETL, cETL, DLC Premium, NEMA 4X, IP66, IK10 |
||
|
|
Material usage |
RoHS compliant; no mercury |
||
|
|
Environment |
Wet location listed |
||
|
|
Warranty |
5 years limited |
||
Product description:
.IP66 LED Module Waterproof Luminaire.
.Frequency :50/60Hz
.Reflector:MCPCB or PCB for your option.
.Body and diffuser could meet the IK10,and 850 degree glow wire test requirment.
.Perfect replacement for the whole set of T8 fluorescent lighting fixture.
.Save up to 60% in electricity consumption compared to fluorescent lighting fixture.
.Lifepan:5 Years.
.Lightweight body material .corrosion resistant,waterproof and dustproof.
.Easy Installation with fast connection design,shorten the installation process and save labor cost.
.It could be fitted with the Microwave sensor,fitted with the Emergency battery to meet the requirment.
Q1: Are you are a factory or a trading company?
We are the factory and we have our own die-casting workshop.
Q2: All products have a warranty?
Yes, all products have 5 years warranty at least.
Q3: Can you put our brand name or logo on our products?
Yes, we support ODM and OEM service.
Q4: Can i have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mix samples are acceptable.
Q5: How to deal with the faulty?
Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.
Secondly, if there are some problems, please contact with us. We can discuss how to deal with them
until you are satisfied.
--- Don't hesitate to contact us!
