Product Details:

Certification: ETL, cETL, DLC Premium,NSF, NEMA 4X, IP66, IK10
Model Number: R2-4VTM36WD-XXK

Payment & Shipping Terms:

Minimum Order Quantity: 2 pieces
Price: $43.00/pieces 2-49 pieces
Get Best Price Contact Now

Detail Information

Color Temperature(CCT): 5000K (Daylight) Input Voltage(V): AC 110V ( ± 10%)
Lamp Luminous Efficiency(lm/w): 140 Warranty(Year): 5-Year
Color Rendering Index(Ra): 80 Support Dimmer: Yes
Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation Lifespan (hours): 50000
Working Time (hours): 50000 Product Weight(kg): 4
Type: Led Vapor Tight Application: Industrial Areas
Color Temp.: 3CCT Select: 3500K, 4000K, 5000K Lifetime(H): 50,000
Size: 1160*106*109mm Power Factor: ≥0.9
Input Voltage: 120-277V Standard (120-347V As Optional) Housing: PC
Humidity: 20%-85% , Non-condensing Product Name: Led Vapor Tight Fixture Ip66 4ft 65w Waterproof Warehouse Lighting

Product Description

Product Description

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 0

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 1

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 2

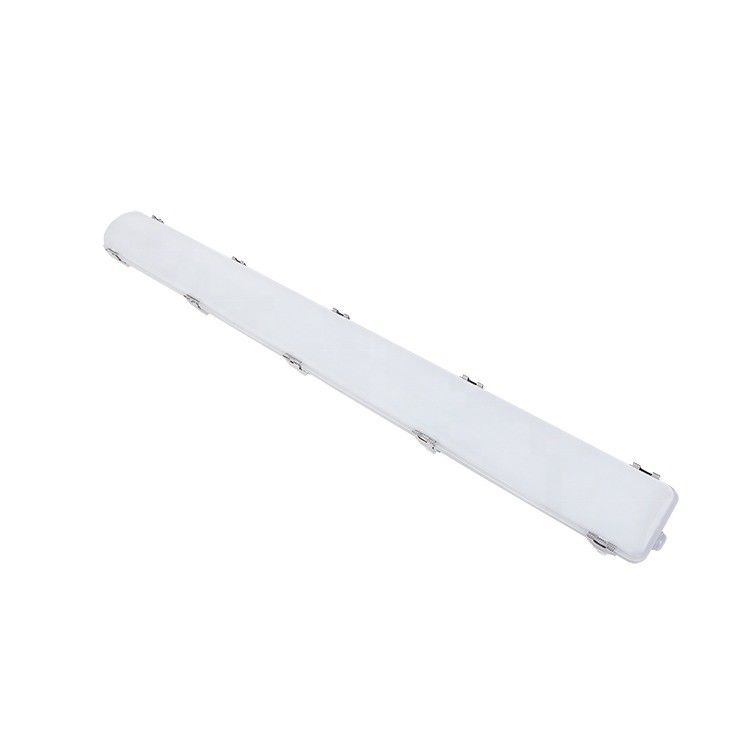

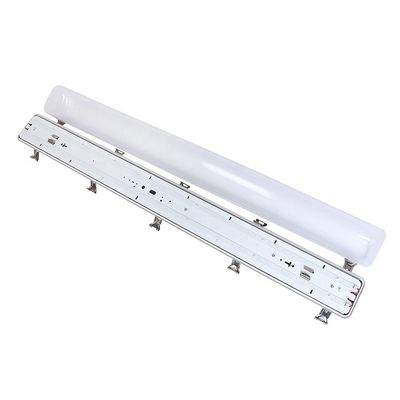

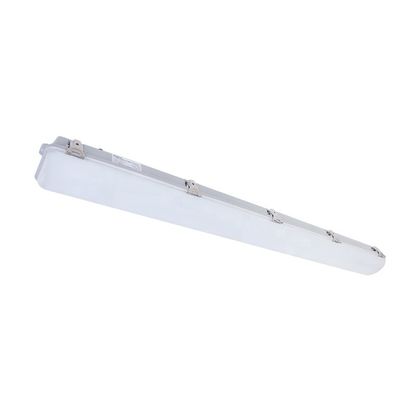

LED Vapor Tight Fixture/Classic 4FT

Features
• IP66 LED module waterproof luminaire
• IK10 Rating.
• NEMA 4X certificated.
• Input: AC120-277V, 50/60HZ, 120-347V as optional.
• Perfect replacement for the whole set of T8 fluorescent luminaire
• Suitable for continuous row mounting,no more than 8 lights linked;
• Lifetime: Limited 5 years by DLC premium
Advantage
• Metal lock is more stable than plastic lock
• One-piece design and lifting handle makes installation easier and save labor cost
• The slot is wider, the position of installation is flexible.
• Built-in sensor is optional. Emergency battery back up available.
• Work in -35°C ~+40°C temp.

Model Selection(Remark: if in 120-347V, the model number should add “HV1” after “D”)

Model Number Power Lumen Efficacy Ra Dimming Ambient Temp Size (mm) Cert
R2-4VTM36WD-XXK 36w 4680 130 80 0-10V Dimmable

-35

~40

1160*120*109 ETL+ DLC premium
R2-4VTM46WD-XXK 46w 5980 130 80
R2-4VTM65WD-XXK 65w 8450 130 80

Drawing

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 3

Specifications

Item Specification Model
R2-4VTM36WD-XXK R2-4VTM46WD-XXK R2-4VTM65WD-XXK
General Performance Power Consumption 36W 46W 65W
Lumens Delivered 4680 5980 8450
Efficacy(lm/w) 130
CRI 80
Color Temp. 4000K, 5000K
Lifetime(H) 50000
Size 45.66"*4.72"*4.29"(1160*120*109mm)
Power Factor ≥0.9
Input voltage 120-277V standard (120-347V as optional)
Physical Housing PC
Humidity 20%-85% RH, non-condensing
Certification Certification ETL, cETL, DLC Premium,NSF, NEMA 4X, IP66, IK10
Material usage RoHS compliant; no mercury
Environment Wet location listed
Warranty 5 years limited

Motion Sensor

 PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 4 PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 5
Built-in motion sensor
120-347V
4m Height Max
Built-in motion sensor
120-277V Only
6m Height Max

Shipping information

Model Watts Pc/inner Pcs/Carton 20GP 40GP 40HQ
R2-4VTM36WD-XXK 36W 1pc/inner 4inner/Carton 1440pcs 2880pcs 3200pcs
R2-4VTM46WD-XXK 46W
R2-4VTM65WD-XXK 65W

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 6

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 7

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 8

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 9

Company Information

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 10

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 11

FAQ

PC Housing DL5.1 LED Vapor Tight Fixture Auto CAD Layout Lighting Solutions Service 12

1.Who choose ILEDING?

ILEDING has a strong R&D team and patented technologies, we consistently deliver to our clients unique design,safe, reliable,and valuable products. All products from ILEDING are ETL/cETL/DLC certified; some of products we have got NEMA 4X and NSF cert;  ILEDING offer a comprehensive OEM &ODM service package including consulting, individual planning design and engineering, cost analysis, delivery terms prognostics, manufacturing, and warranty.

2 .What do you offer for warranty?

We provide 5 years warranty to all our LED fixtures. The products should be under usage of normal condition or as recommended in the manual. We will replace or repair defective products within seven working days upon our approved inspection of the returned product except some improper using.

3, Do you offer OEM&ODM Service?

Yes,ILEDING has a professional R&D team and good experience in making custom OEM and ODM orders.

4.How do you test quality?

We have full sets of inspection machines:Integrating ball test, high and low pressure impact test.etc We also control the quality from in-material/accessories/online QC/final products QC/QC before shipping. We do 100% quality control for our customers, also we can send to the third party inspection institution to test based on your requirements.

5, How to order the products?

*Visit our website on Alibaba or our official website www.runluxled.com to choose the items you interest; *Contact our sales by email or phone number to get further details; *Placing an order,and pay for the PI you get from our sales.Send bank slip by email; *Keep you informed during order processing and logistic arranging; *Feedback your comments after you get the parcels.

6, How long will your order take to arrive?

We will process your order once receipt of your payment. Production Term: shipped the sample orders within 7 days and 15-30 days for bulk order. Transport term: Once an order is ready, the specific delivery time depends on shipping method: by sea;air or courier; After your order has been shipped you will receive a shipping confirmation that contains the tracking details from our sales person.
