Lighting Solutions Service LED Vapor Tight High Bay for Warehouse Tri-proof Car Washing
Product Details:
| Certification: | ETL DLC |
| Model Number: | R4S-4VTA150WD4P-3CK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $76.00/pieces 2-49 pieces |
|
Detail Information |
|||
| Color Temperature(CCT): | 5000K (Daylight) | Input Voltage(V): | AC 110V ( ± 10%) |
|---|---|---|---|
| Lamp Luminous Efficiency(lm/w): | 150 | Warranty(Year): | 5-Year |
| Color Rendering Index(Ra): | 80 | Support Dimmer: | Yes |
| Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 5 |
| Type: | Industrial | Application: | Warehouse, Farm ,warehouse |
| Product Name: | Factory Tri-proof Waterproof Light Warehouse LED Vapor Tight Fixture | Wattage: | 155w/135w/120w/105w |
| Material: | Pc | Installation: | Surface Mounted Suspended |
| CCT: | 3500K/4000/5000K | Driver: | Isolated Driver |
| PF: | 0.9 | Voltage: | 120-277v/347v |
Product Description
Product Description

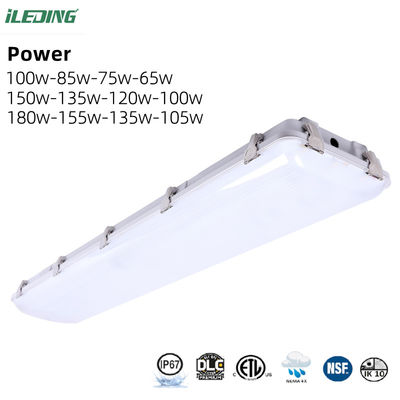

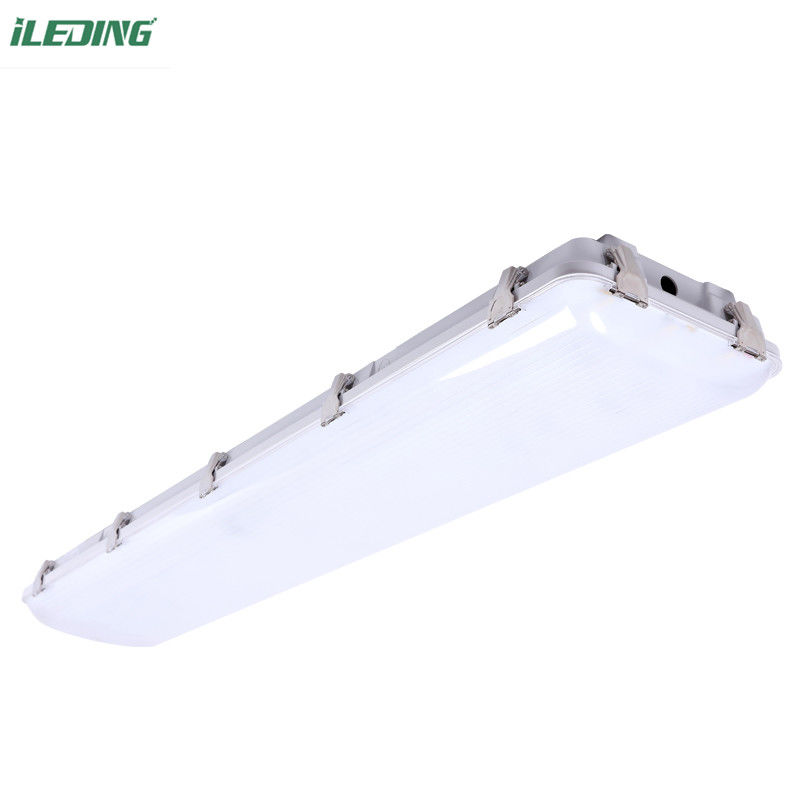

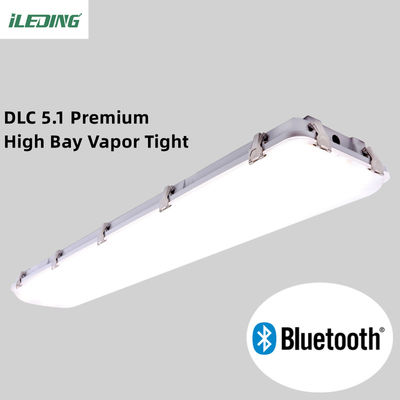

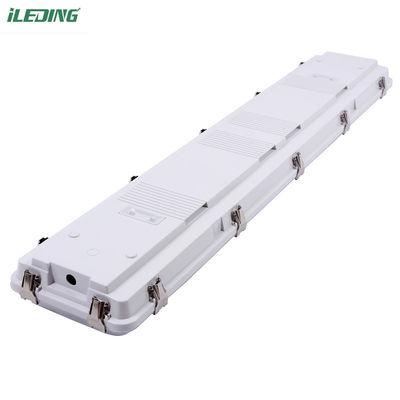

Factory Tri-proof Car Washing Waterproof Light Warehouse LED Vapor Tight Fixture

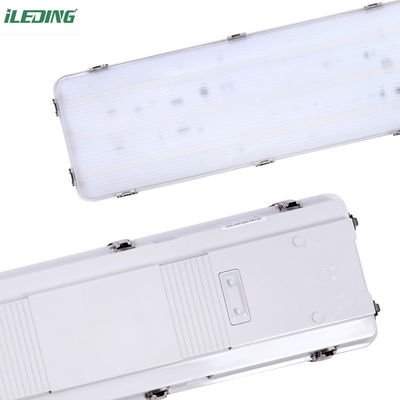

Detailed Images
Features:
Own design, Own moulding DLC 5.1 premium, 140Lm/w; Certification in NSF; IK10; NEMA 4X; IP67； 120-277V; 120-347V; 347-480V; work temp in -40℃ (-104F)~+40℃. Size:1267*258*103.5mm 3CCT & 4WATT selectable
Product Presentation
|
Model No.
|
R4S-4VTA150WD4P-3CK
|
|
Material
|
PC
|
|
Power
|
150W/135W/120W/100W
|
|
CCT
|
3500K/4000K/5000K
all in one fixture
|
|
Voltage
|
120-277V/347V
|
|
Lumen
|
14000LM
|
|
Size
|
L 1267* W 258* H 103.5mm
|
|
Dim
|
0-10V
|
|
PF
|
0.9
|

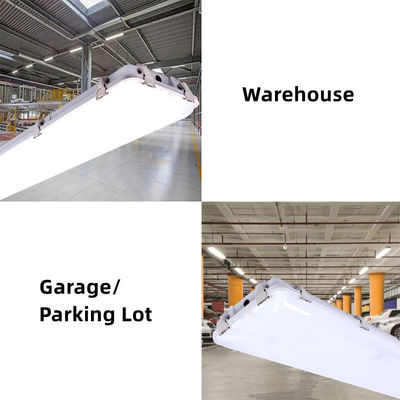

Application
Certificate
Related Products
Company Introduction
Shanghai ileding has a very professional quality control system. QC are strictly under control during the process of incoming inspection, production, storage and delivery, so as to guarantee a good quality.
Packing&Shipping
FAQ
Q1: Are you are a factory or a trading company?
We are the factory and we have our own die-casting workshop.
Q2: All products have a warranty?
Yes, all products have 5 years warranty at least.
Q3: Can you put our brand name or logo on our products?
Yes, we support ODM and OEM service.
We are the factory and we have our own die-casting workshop.
Q2: All products have a warranty?
Yes, all products have 5 years warranty at least.
Q3: Can you put our brand name or logo on our products?
Yes, we support ODM and OEM service.
Q4: Can i have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mix samples are acceptable.
Q5: How to deal with the faulty?
Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.
Secondly, if there are some problems, please contact with us. We can discuss how to deal with them
until you are satisfied.
--- Don't hesitate to contact us!
Yes, we welcome sample order to test and check quality. Mix samples are acceptable.
Q5: How to deal with the faulty?
Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.
Secondly, if there are some problems, please contact with us. We can discuss how to deal with them
until you are satisfied.
--- Don't hesitate to contact us!
